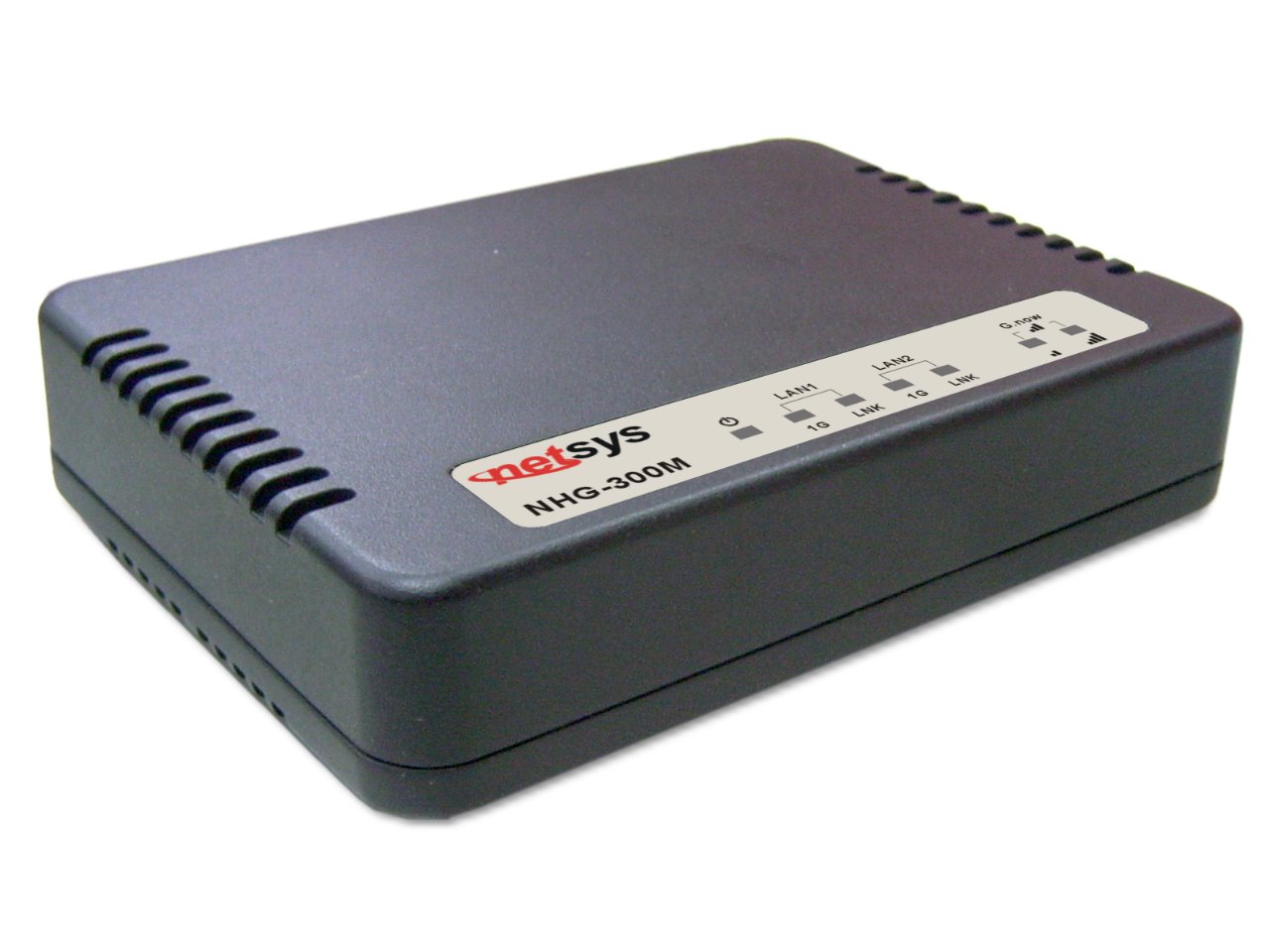

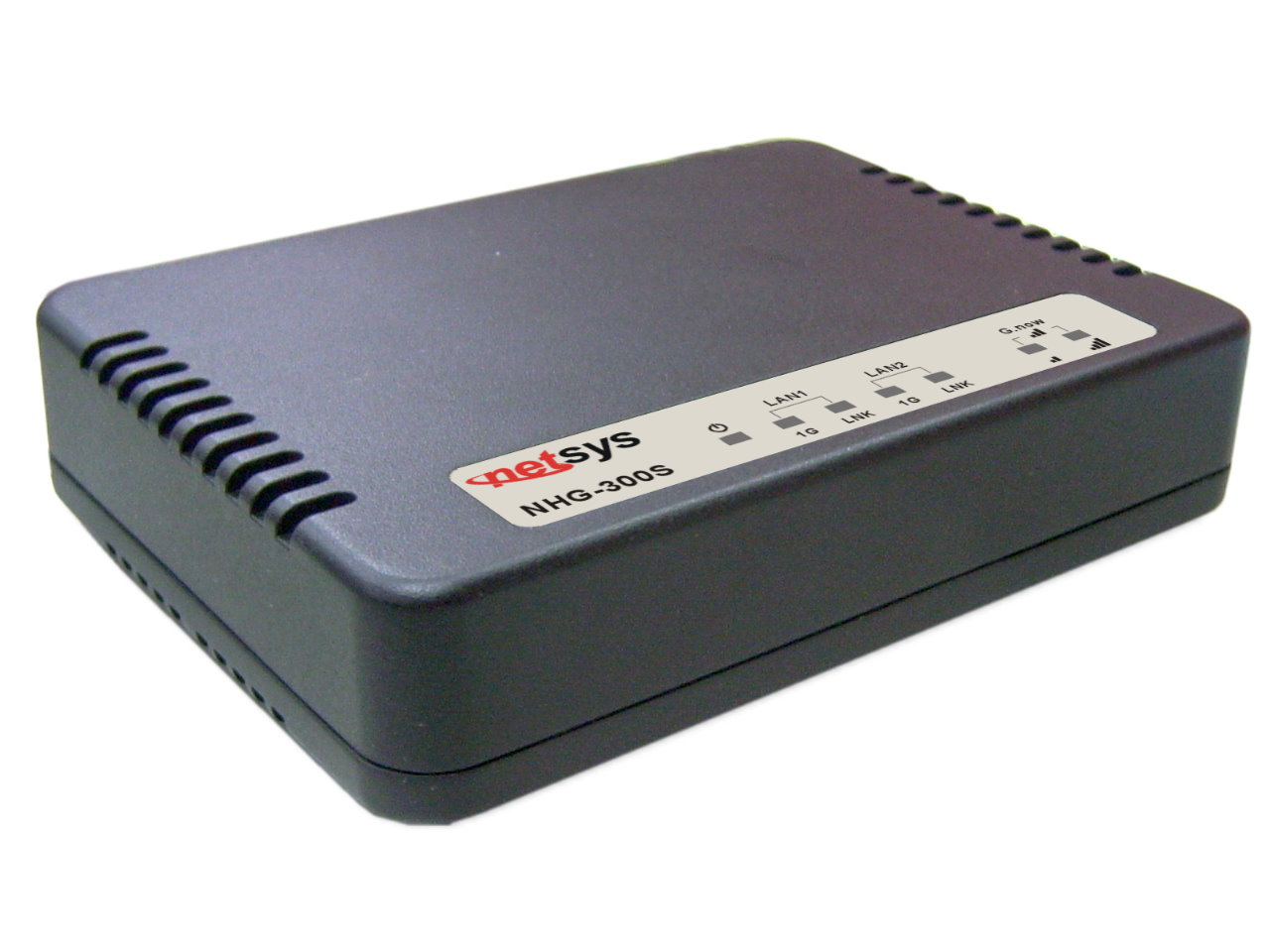

NHG-300M/S
2 Giga LAN over 1.7Gbps G.now phone wire modem
| Ordering Information | ||
| NHG-300M/S | 2 Giga LAN over 1.7Gbps G.now phone wire modem | |
- OVERVIEW
- FEATURES
- SPECIFICATIONS
- APPLICATIONS
- DOWNLOAD
Product OVERVIEW
The NHG-300 is a Utilizing TDD (Time Division Duplexing) architecture and an expanded 100 MHz OFDM spectrum, the NHG-300 G.now modem leverages G.hn technology to revolutionize wireline broadband access as a superior upgrade to VDSL2. Delivering unmatched speeds of up to 1.7 Gbps over existing copper wiring, far surpassing the 100 Mbps limit of legacy VDSL systems, G.now is positioned to lead the 'last mile' of broadband services.
As a more cost-effective and agile alternative to FTTH, G.now allows telcos to provide high-performance access at competitive prices while maximizing their existing copper infrastructure. As a pioneer of the world's first G.now solution, Netsys reinforces its commitment to the evolution of broadband, supporting future-proof, bandwidthintensive applications such as UHD 4K Streaming.
FEATURES
- Supports dual Giga LAN over phone wire
- Support MTU up to 2k bytes
- Advanced FEC (Forward Error Correction) mechanism
- Automatic retransmission to ensure zero packet loss
- Advanced NDIM technology for interference mitigation in MDUs with high density of users
- Built-in LED indicators for link quality verification
- Leverages SISO to achieve high-speed throughput of up to 1.7 Gbps
- Automatic mitigation of Near-End Crosstalk (NEXT) between copper wires in a bundle
- Supports line port distances of up to 500 meters over single pair phone wire
- Supports IGMP (IPv4) and MLD (IPv6) Snooping for optimized IPTV and video traffic management
- Built in splitter for the phone port to allow simultaneous voice and high-speed data
- Built-in surge protector for the line port to ensure long-term reliable
* Specifications are subject to change without prior notice.
Specifications
| Standard Conformance | ||
| Standard: | IEEE802.3 / IEEE802.3u / IEEE802.3ab standard ITU-T G.9960/9961/9962/9964 standard |
|
| Regulatory Compliance: | FCC CE |
|
| Hardware Specifications | ||

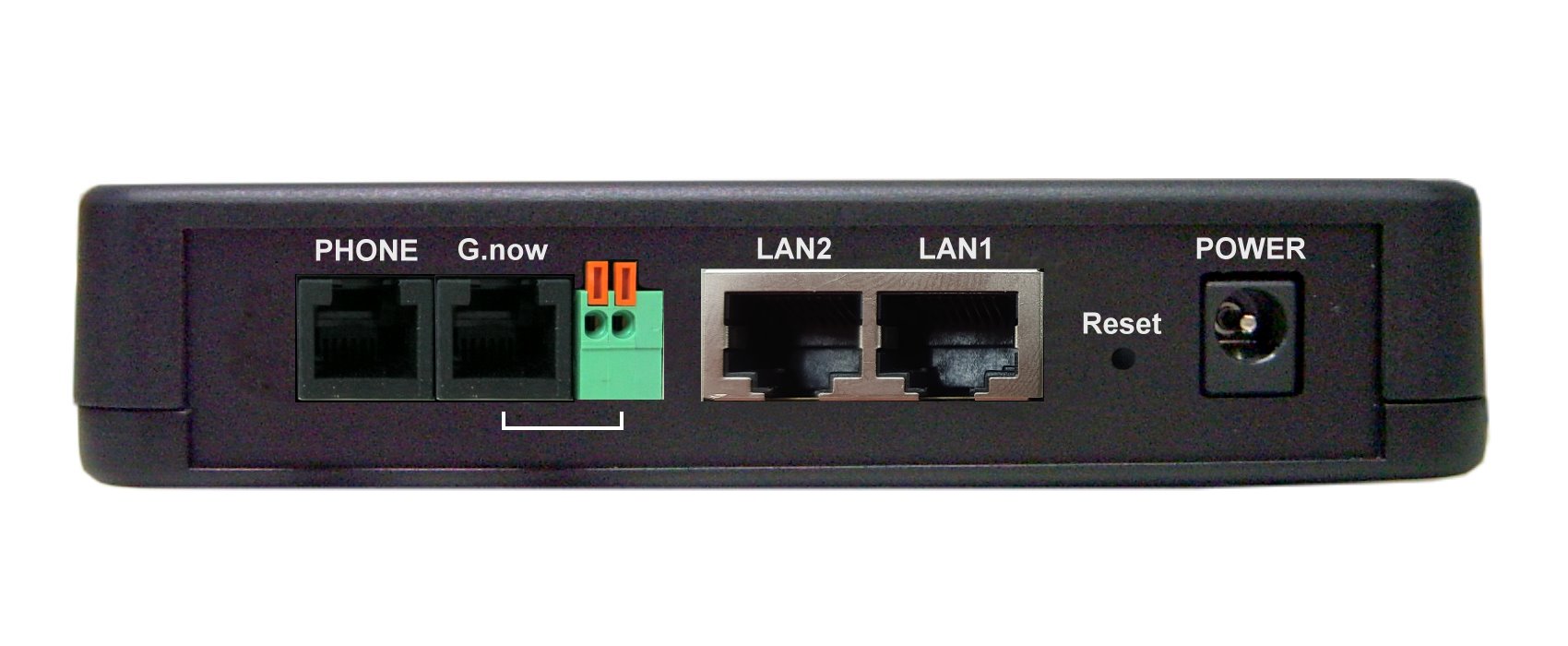

| Physical Interface: | 2 x RJ-45 connector 1 x RJ-11 connector for G.now line port 1 x RJ-11 connector for splitter port |
|
| Max. Data Rate: | 1.7 Gbps | |
| Max. distance | 500m (1640ft) | |
| LED indications: | LAN: Act/Link, Power G.now Quality: High/Middle/Low, Security |
|
| G.hn Modulation Working frequency: | OFDM 5Mhz ~ 200Mhz | |
| Power Requirement: | 12VDC / 1A for commercial type adapter | |
| Typical Power Consumption: | Typical 4 watts | |
| Operating Temperature: | 0°C~ 50°C (32°F ~ 122°F) Fanless, free air cooling | |
| Storage Temperature: | -20°C ~ 70°C (-4°F ~ 158°F) | |
| Humidity: | 10 to 90% (non-condensing) | |
| Dimensions: | 130mm x 94.5mm x 27mm (5.12” x 3.72“ x 1.06“) (L x W x H) | |
* Specifications are subject to change without prior notice.

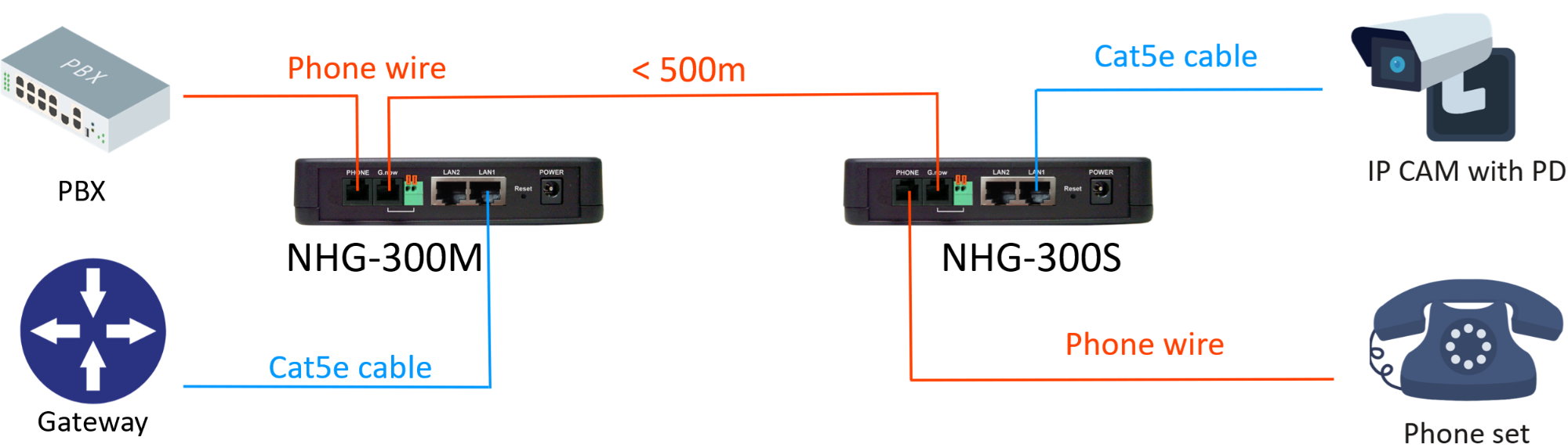

APPLICATIONS
DOWNLOAD
| Release Date | File | Version | Download |
|---|---|---|---|
| June, 2026 | Datasheet | N/A |  |
| N/A | User's manual | N/A | |
